65 83 010 Removing and installing/replacing Car Communication Computer

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection) .

Necessary preliminary tasks:

Disconnect Battery Negative Lead
Remove Operator Unit For Heater/Air Conditioner
Remove Center Console Switch Center

NOTE: Comply with notes and instructions on Handling Optical Waveguides .

Release screws (1).

Pull back Car Communication Computer (2) slightly.

Unlock associated plug connections and disconnect.

Remove Car Communication Computer (2).

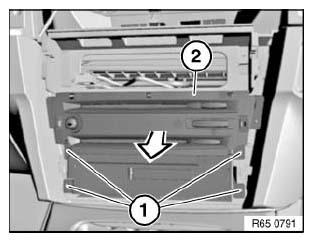

Fig 1: Identifying Car Communication Computer And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out programming/coding.
