65 77 740 Removing and installing (replacing) left front door sensor
WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection)
.
WARNING:
Note airbag safety instructions!
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Detach Sound Insulation in work area

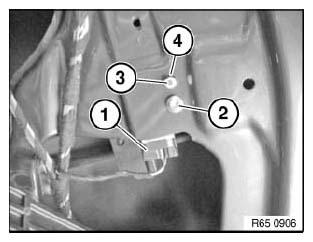

Unfasten plug connection (1) and disconnect.
Release screw (2).
For tightening torque refer to 65 77 7AZ in 65 77 AIRBAG TRIGGERING CONTROL .
Remove sensor with pin (3) from door panel fit (4) towards rear.
Installation:
Make sure fit (3) is correctly seated.
