65 77 541 Removing and installing/replacing front left or right acceleration sensor

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Acceleration sensor only fitted in US version!

Unlock plastic fasteners (1) by turning counterclockwise through 180°.

Feed flap (2) in direction of arrow out of front wheel arch cover (3) and remove.

Fig 1: Identifying Plastic Fasteners, Flap And Front Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove acceleration sensor (2).

Disconnect plug connection (3).

Installation:

Replace screws (1).

For tightening torque refer to 65 77 9AZ in 65 77 AIRBAG TRIGGERING CONTROL .

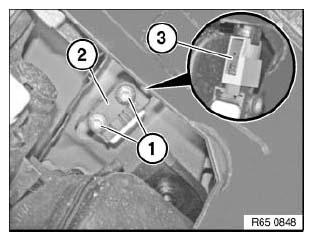

Fig 2: Identifying Mounting Screws, Plug Connection And Acceleration Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
