65 00 ... Overview of audio components (HiFi system)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

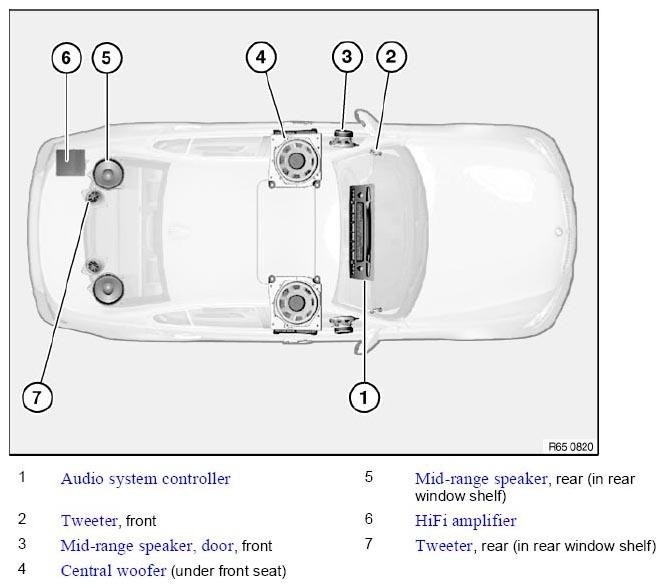

Fig 1: Identifying Audio Components (HiFi System)
G04727915Courtesy of BMW OF NORTH AMERICA, INC.
