Switching On Automatic Headlight Control
WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Main-beam assistant active only when light switch is in position "A".
The main-beam assistant can be activated only when the light switch is in position "A".
If the light switch is in the "dipped-beam" position, the main-beam headlights have to be switched on and off manually, in the usual way.
- Turn the light switch to position "A" This switches on automatic headlight control.
- In twilight and in the dark the low-beam headlights are automatically switched on. The green indicator light in the light switch comes on. The low-beam headlights are switched on as follows:
The bi-xenon headlights are switched on dipped.
NOTE:

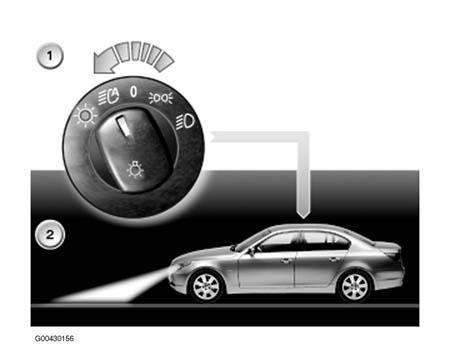

Arrows in illustrations
In the illustration, each broken-line arrows indicates an action (e.g. "turn the light switch to position "A").
The narrow arrows indicate the results of these actions in terms of system response.
