System Circuit Diagram

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

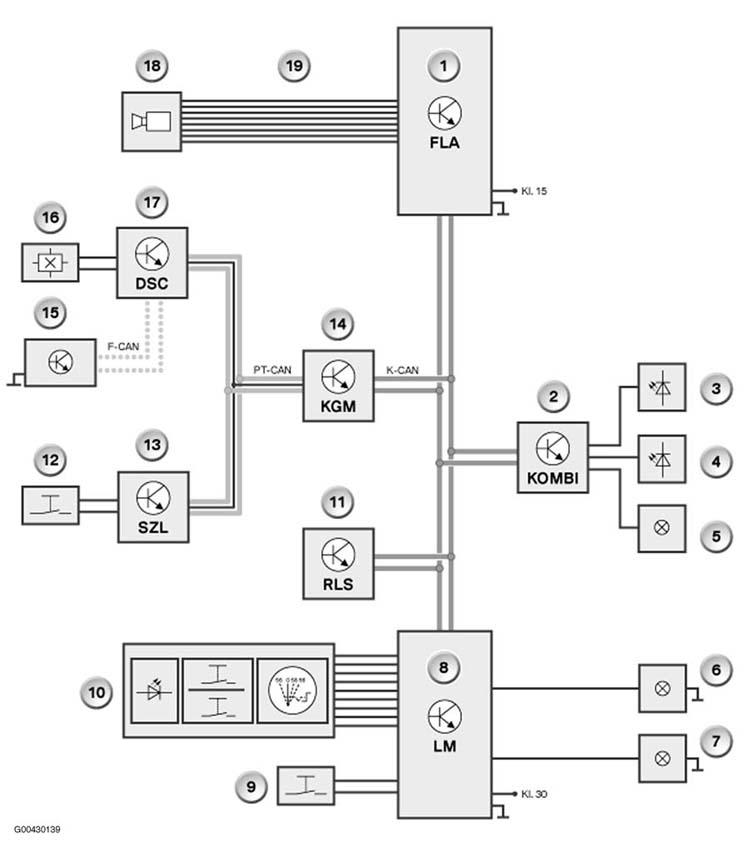

Fig 1: Main-Beam Assistant System Circuit Diagram
G00430139Courtesy of BMW OF NORTH AMERICA, INC.

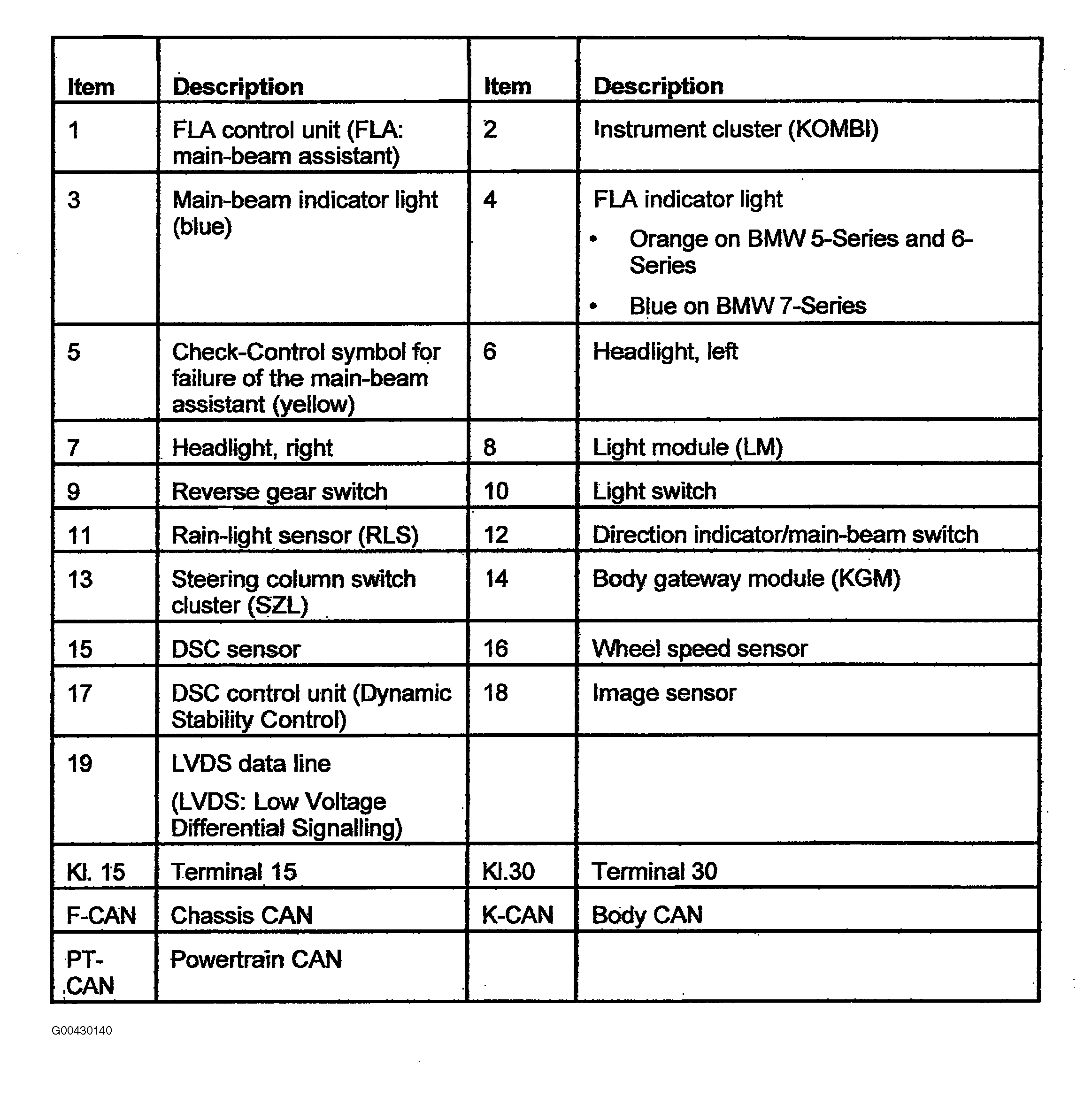

Fig 2: Legend For Main-Beam Assistant System Circuit Diagram
G00430140Courtesy of BMW OF NORTH AMERICA, INC.
