System Overview For The Main-Beam Assistant: E60, E61, E63, E64, E65, E66: Inputs/Outputs

WARNING: This page does not describe the selected car, but rather 46 other vehicles, including the 2008 BMW M5, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW M6, and 2007 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

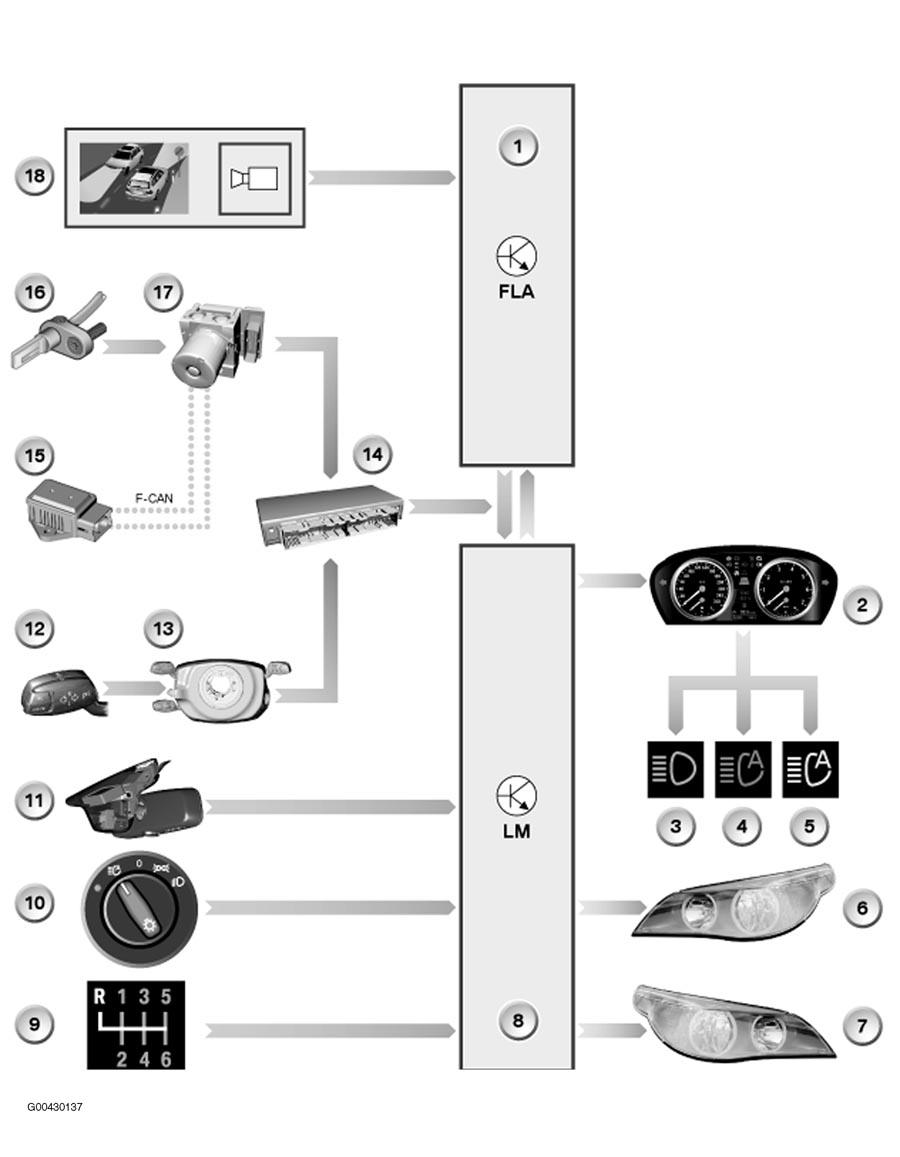

Fig 1: Main-Beam Assistant Input/Output Block Diagram
G00430137Courtesy of BMW OF NORTH AMERICA, INC.

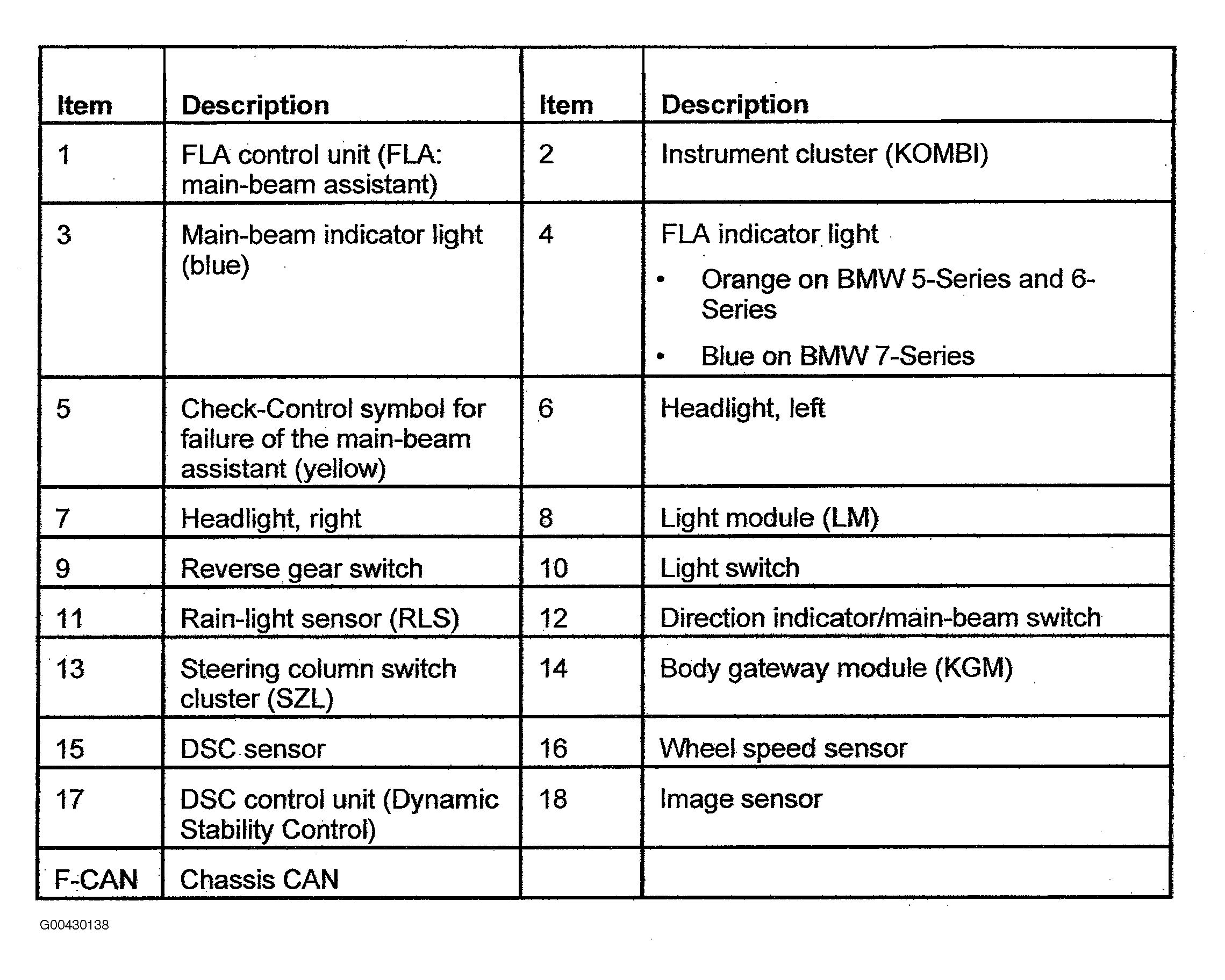

Fig 2: Legend For Main-Beam Assistant Input/Output Block Diagram
G00430138Courtesy of BMW OF NORTH AMERICA, INC.
