Rear Power Distributor With Terminal 30g Relay E60, E61, E63, E64
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2006 BMW Z4, 2006 BMW M3, 2006 BMW M Roadster, 2006 BMW M Coupe, and 2006 BMW 550i. However, it is still accessible from the selected car via links, so may be relevant.
Installation location
The rear power distributor with terminal 30g relay is located in the right-hand side of the luggage compartment.
Construction
Along with other components, the terminal 30g relay is installed on the rear power distributor.

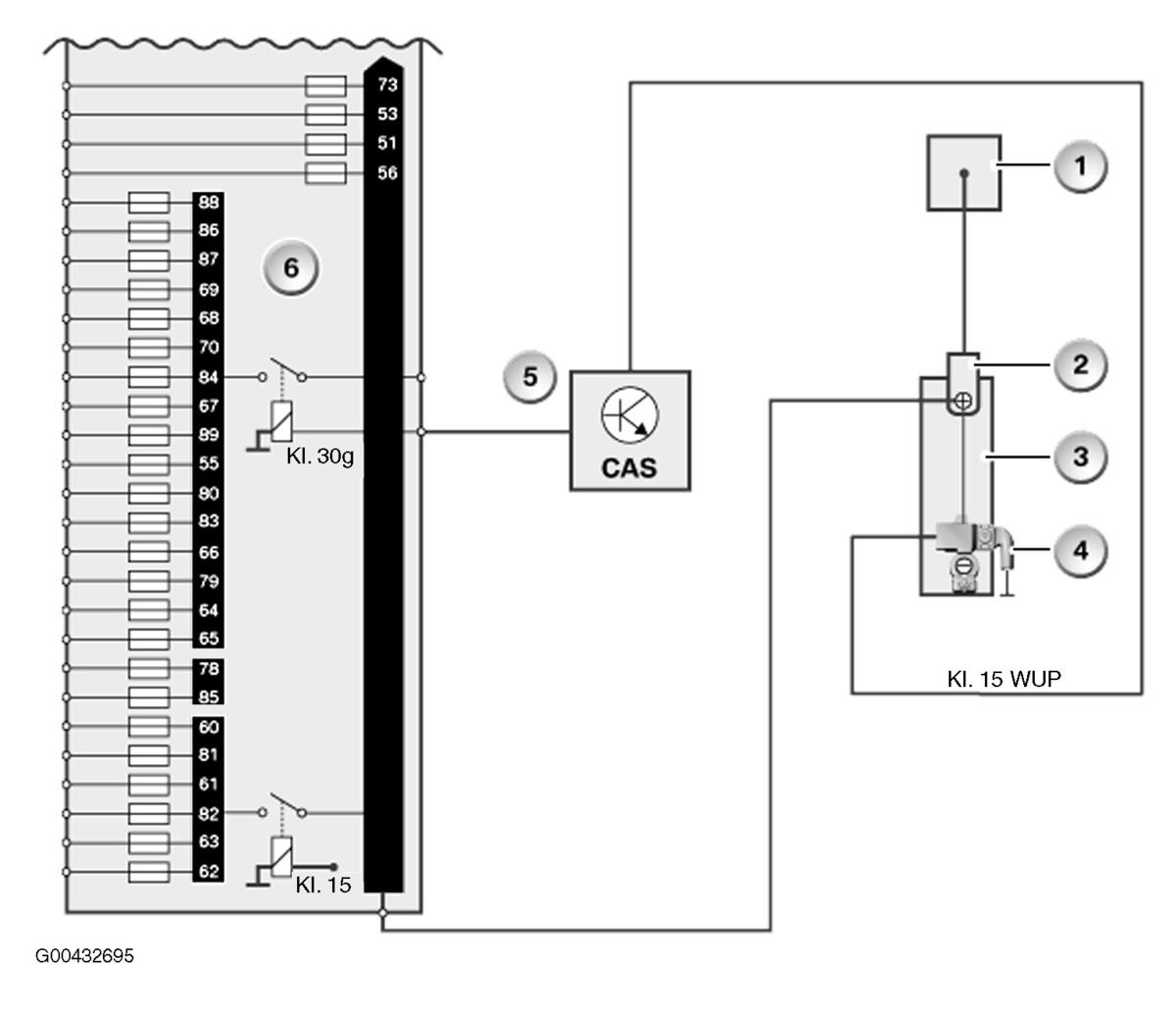

Fig 1: Identifying Construction Of Rear Power Distributor With Terminal 30g Relay E60, E61, E63, E64
CONSTRUCTION OF REAR POWER DISTRIBUTOR WITH TERMINAL 30G RELAY E60, E61, E63, E64
| Item | Description | Item | Description |
|---|---|---|---|
| 1 | Starting-aid terminal | 2 | Safety battery terminal |
| 3 | Battery | 4 | Intelligent battery sensor (IBS) |
| 5 | Car Access System (CAS) | 6 | Rear power distributor with terminal 30g relay |
| Kl. 30g | Terminal 30g, active | Kl. 15 | Terminal 15, ignition lock position 1 |
| Kl. 15 WUP | Terminal 15 wake-up wire |
How it works
The rear power distributor is connected to the positive terminal of the battery. The terminal 30g relay on the rear power distributor is actuated by the Car Access System (CAS) according to predefined priorities. The consumers connected to the terminal 30g relay are switched on and off according to these priorities.
