Section 1025 (Propeller Shaft - Repair (N54))
>>
Propeller Shaft Assembly
>>
26 11... Overview (inserted propeller shaft)
26 11... Overview (inserted propeller shaft)
WARNING:
This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

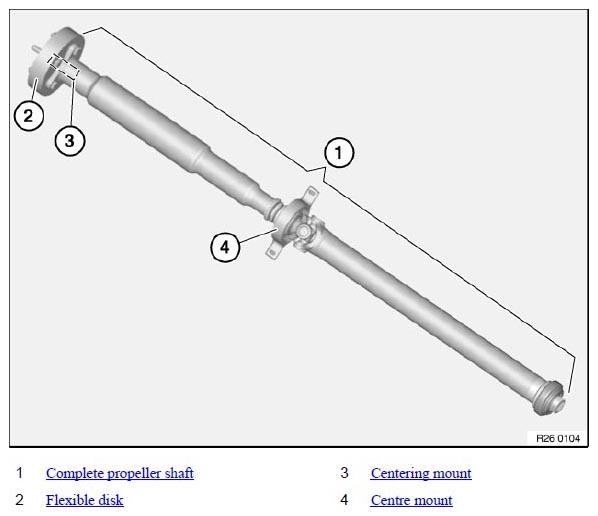

Fig 1: Overview Of Propeller Shaft
Courtesy of BMW OF NORTH AMERICA, INC.
