17 11 150 Removing and installing/replacing supplementary coolant cooler (N54)
WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove right wheel arch cover front section . See 51 71 038 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH COVER (FRONT SECTION) .
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
IMPORTANT:
Wear protective goggles and gloves.
Recycling:
Coolant emerges when coolant lines are detached. Catch and dispose of escaping coolant in a suitable container.
Observe country-specific waste-disposal regulations.

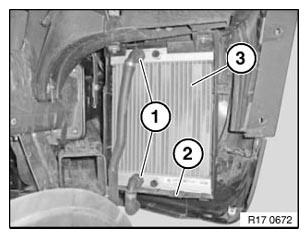

Detach coolant lines (1).
Catch and dispose of escaping coolant.
Unlock and disconnect holder (2).
Remove radiator (3).
NOTE:
After completion of work, check coolant level.
If necessary, add coolant .
Add final details to vehicle.
If necessary, add coolant .
Add final details to vehicle.
