17 11 056 Removing and installing both module carriers (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Necessary preliminary tasks:

Remove fan cowl .
Remove intercooler
Remove steering cooling coil

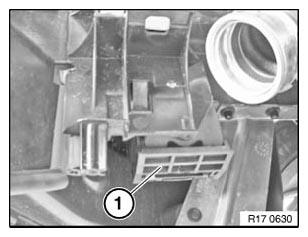

Unclip module carrier holders (1) on left and right.

(Picture shows right module carrier holder)

Fig 1: Identifying Module Carrier Holders

Courtesy of BMW OF NORTH AMERICA, INC.

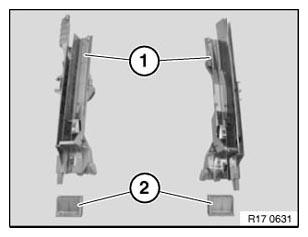

Remove left and right module carriers (1).

Fig 2: Identifying Left And Right Module Carriers

Courtesy of BMW OF NORTH AMERICA, INC.
