12 14 550 Replacing control unit (DME) (N54): Notes

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection)

Necessary preliminary tasks:

Switch off ignition
Disconnect battery negative lead , see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
Remove microfilter housing , see 64 31 081 REMOVING AND INSTALLING/REPLACING MICROFILTER HOUSING

IMPORTANT: Follow instructions for removing and installing control units, see 12 00... Notes/information on removing and installing control units .

Replacement:

Carry out programming/coding
If no data can be read out from the previous control unit, carry out injection quantity adjustment (description at end of instruction).

IMPORTANT: It is absolutely essential to read out the fault memory with the BMW diagnosis system and to create a fault memory printout.

Switch off ignition.

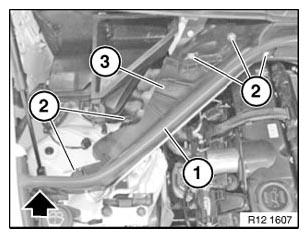

Lever out expander rivet.

Remove gasket (1).

Release screws (2).

Feed out partition (3) and remove.

Fig 1: Identifying Gasket, Screws And Partition

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out expander rivet.

Release locks in direction of arrow.

Feed out fresh-air duct (1) and remove.

Fig 2: Identifying Fresh-Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Open retainers.

Release lock (1) in direction of arrow.

Remove cover (2).

Fig 3: Identifying Lock And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove retaining bar (1).

Unlock upper section (2) of partition seal in direction of arrow and remove.

Release grommets (3) for wiring harnesses from lower section of partition seal and from electronics box.

Installation:

Make sure grommets are correctly seated (watertightness).

Fig 4: Identifying Retaining Bar, Upper Section And Grommets

Courtesy of BMW OF NORTH AMERICA, INC.

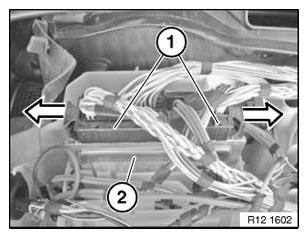

Unlock plugs (1) using slide in direction of arrow and remove.

Remove control unit (2).

Installation:

Replacement:

Note device identification number and coding.

Fig 5: Identifying Plugs And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
