11 61 368 Replacing charge-air duct (N54)

WARNING: This page is about a different car, the 2010 BMW X6, 2009 BMW X6, and 2008 BMW X6. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove intake filter housing . See 13 71 000 REMOVING AND INSTALLING/REPLACING INTAKE FILTER HOUSING (N54) .
Remove fan cowl . See 17 11 035 REMOVING AND INSTALLING/REPLACING FAN COWL WITH ELECTRIC FAN (N54) .

IMPORTANT: Charge-air hoses with clamp fastenings must be installed dry and free from grease!
If charge-air hoses with clamp fastenings are not installed dry and free from grease, this may result in turbocharger failure!

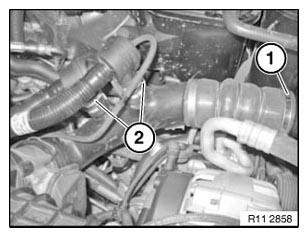

Unfasten hose clip (1).

Tightening torque 13 71 6AZ , see 13 71 AIR INTAKE SILENCER

Installation:

Install charge-air hoses dry and free from grease.

Release quick-connect couplings (2) by turning lock through 90°.

Detach recirculated-air hoses (2) and lay to one side.

Fig 1: Identifying Hose Clip And Quick-Connect Couplings

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bring lock (1) back 90° into installation position.

Pay attention to markings.

Recirculated-air hoses must snap audibly into place!

Fig 2: Bring Lock (1) Back 90° Into Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

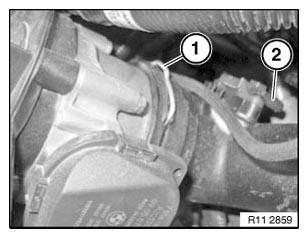

Release quick-release coupling (1) on charge-air duct.

Unlock connector (2) and remove.

Fig 3: Identifying Quick-Release Coupling And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Coat sealing rings of quick-connect couplings with antiseize agent.
Pressure pipes cannot be fitted without antiseize agent!

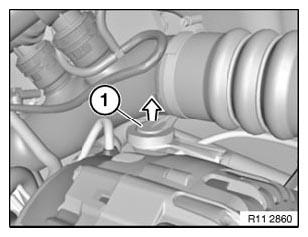

IMPORTANT: Risk of breakage!
Carry out operation carefully. The holder (1) on the charge-air duct can break during removal.

Remove charge-air duct by levering out holder (1) in direction of arrow.

Installation:

Coat holder (1) on charge-air duct with antiseize agent.

Fig 4: Identifying Holder On Charge-Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock quick-connect coupling.

Detach charge-air duct (1) from intercooler (2).

Installation:

Coat sealing rings of quick-connect couplings with antiseize agent.
Pressure pipes must audibly snap into place.

Fig 5: Identifying Charge-Air Duct And Intercooler

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Read out fault memory of DME control unit
