63 10 004 Adjusting headlights

NOTE: Observe test preconditions for adjusting headlights  , see 63 10... Test requirements for headlight vertical aim adjustment .

Adjust headlights at adjusting screws (1) and (2).

A definite allocation of adjusting screws is not possible.

  1. Adjustment screw primarily for vertical adjustment
  2. Adjustment screw primarily for lateral adjustment

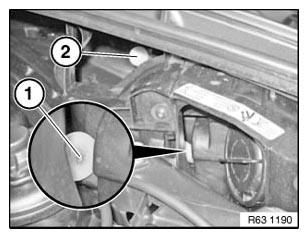

Fig 1: Identifying Headlights Adjusting Screws
G06213610Courtesy of BMW OF NORTH AMERICA, INC.
