52 26... Removing and installing/replacing ski bag on rear seat

Special tools required:

Necessary preliminary tasks:

Release screw (1).

Release screws (2).

Tightening torque: 52 26 09AZ  , see 52 26 REAR SEATS (THROUGH-LOADING SYSTEM) .

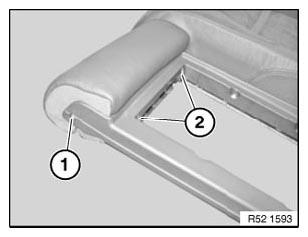

Fig 1: Identifying Ski Bag Screws
G06213210Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 52 26 09AZ  , see 52 26 REAR SEATS (THROUGH-LOADING SYSTEM) .

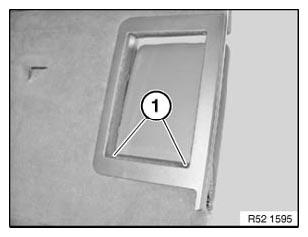

Fig 2: Identifying Ski Bag Screws
G06213211Courtesy of BMW OF NORTH AMERICA, INC.

Lever out pins.

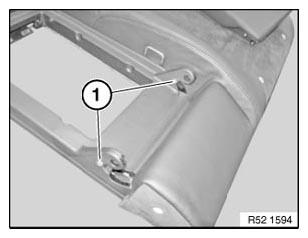

Fig 3: Identifying Ski Bag Pins
G06213212Courtesy of BMW OF NORTH AMERICA, INC.

Lever out rear ski bag frame (1) with special tool 00 9 317  .

IMPORTANT: Risk of damage!
Plastic eyelets of front trim ski bag trim can break.
If necessary, replace faulty ski bag trim.
Fig 4: Levering Out Rear Ski Bag Frame
G05779739Courtesy of BMW OF NORTH AMERICA, INC.

Unclip front ski bag trim (1) towards top.

Installation:

Plastic eyelets of front ski bag trim must not be damaged.

If necessary, replace faulty ski bag trim.

Fig 5: Unclipping Front Ski Bag Trim
G05779738Courtesy of BMW OF NORTH AMERICA, INC.
