52 16... Repairing seat cover for front seat (sport/electrical)

Necessary preliminary tasks:

Remove SWITCH COMBINATION for seat adjustment.

Following parts are needed for repair of a front seat:

2 reinforcements, part number 52 10 7302024
4 blind rivets, part number 83 19 0301421
4 washers, part number 07 11 9904396
Felt tape, self-adhesive, part number 61 13 6908716

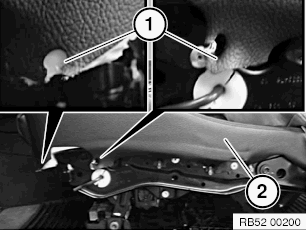

Damage can be seen from loose side section. Mountings (1) on seat cover (2) are torn out.

Fig 1: Mountings On Seat Cover Are Torn Out

G00529695

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Both mountings must always be repaired. Following work operations apply for both mountings on seat cover.

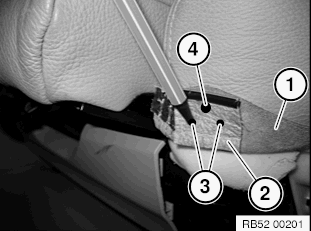

Fold up seat cover (1). Align securing eye (4) of reinforcement (2) to torn out securing eye of seat cover (1). Mark attachment points (3) of reinforcement (2) on seat cover (1).

Fig 2: Aligning Securing Eye Of Reinforcement To Torn Out Securing Eye Of Seat Cover

G00529696

Courtesy of BMW OF NORTH AMERICA, INC.

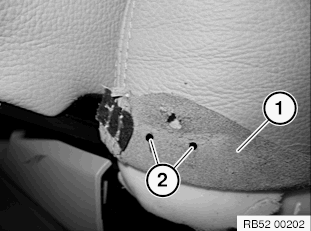

Pierce seat cover (1) at marks (2) for securing with a rivet.

IMPORTANT: Do not damage seat cover.

Fig 3: Identifying Rivet Location

G00529697

Courtesy of BMW OF NORTH AMERICA, INC.

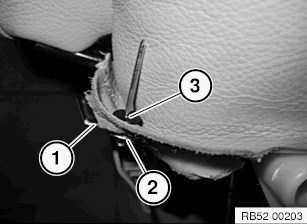

Insert rivet (3) through seat cover. Rivet reinforcement (1) with washers (2) through reassembled holes in the seat cover.

IMPORTANT: Make sure reinforcement (1) is correctly aligned. Plastic (1) of reinforcement must be secured downward.

Fig 4: Ensure Reinforcement Is Correctly Aligned

G00529698

Courtesy of BMW OF NORTH AMERICA, INC.

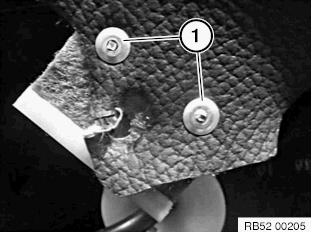

IMPORTANT: Rivet shanks (1) must be completely torn off.

Fig 5: Ensure Rivet Shanks Are Torn Off

G00529699

Courtesy of BMW OF NORTH AMERICA, INC.

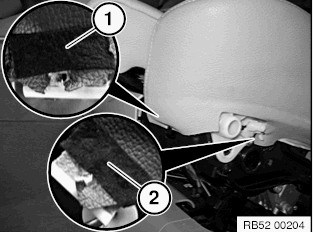

Mask front of rivet connections (1) with felt tape. Mark front and rear sides of rivet connections (2) with felt tape. Attach repaired mountings of seat cover in seat frame.
