61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

Special tools required:

NOTE:

IMPORTANT: Risk of damage!
Protect middle fresh-air grille in working area against damage, tape off if necessary.

Lever switch for hazard warning flashers/central locking (1) with special tool 00 9 340 out of middle fresh-air grille and feed out.

Disconnect associated plug connection and remove switch for hazard warning flashers/central locking (1).

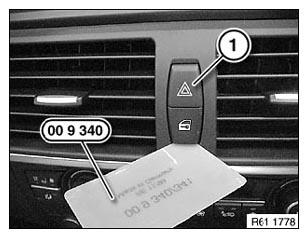

Fig 1: Lever Hazard Warning Flashers And Central Locking With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
