61 31 052 Removing and installing/replacing center console switch cluster

Necessary preliminary tasks:

• Remove middle trim for instrument panel  . See 51 45 310 REMOVING AND INSTALLING (REPLACING) CENTER TRIM FOR INSTRUMENT PANEL .

Disconnect plug connection (1) and expose ribbon cable up to center console switch cluster (2).

Unclip center console switch cluster (2) at retaining points (3).

Remove center console switch cluster (2) in direction of arrow from instrument panel trim.

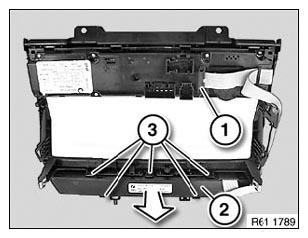

Fig 1: Identifying Plug Connection And Centre Console Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
