61 31 011 Removing and installing/replacing volute spring cassette

Necessary preliminary tasks:

• Remove steering column switch cluster

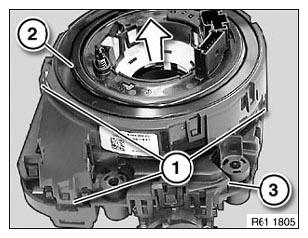

Unlock catch (1) and remove volute spring cassette (2) in direction of arrow from steering column switch cluster (3).

Fig 1: Removing Volute Spring Cassette And Steering Column Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

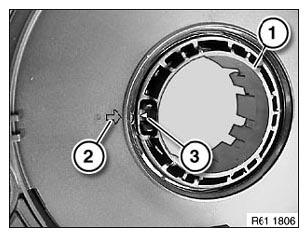

Marking (2) must line up with marking (3).

Fig 2: Identifying Volute Spring Cassette Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

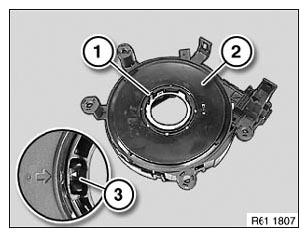

Drive pin (1) of volute spring (2) must line up correctly with opening (3) in inner ring of steering column switch cluster.
