84 21 541 Removing and installing (replacing) hands-free charging electronics (High)
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
.
NOTE:
Comply with notes and instructions on handling optical waveguides
.
Necessary preliminary tasks:
- Remove complete rear console . See 51 16 270 REMOVING AND INSTALLING COMPLETE REAR SECTION OF REAR CONSOLE .

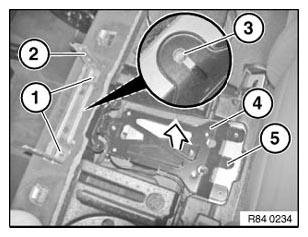

Release nuts (1) and remove rear console holder (2).
Release screw (3) and raise hands-free charging electronics holder (4) in direction of arrow.
Installation:
Make sure centering pin (5) is correctly seated in associated hold of hands-free charging electronics holder (4).

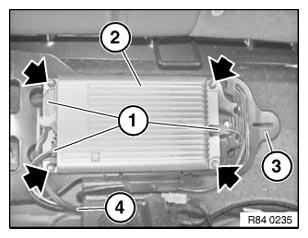

Disconnect plug connection (1).
Release all nuts.
Remove hands-free charging electronics (2) from hands-free charging electronics holder (3).
Installation:
Make sure wiring harness (4) is laid correctly.
Replacement:
Carry out VEHICLE PROGRAMMING/CODING .
If necessary, log mobile phone on to vehicle.
