51 34... Removing and installing/replacing trim for window guide of left or right rear door

Necessary preliminary tasks:

• Open rear side window
• Remove inner window cavity seal, see 51 22 351 Replacing window cavity seal on inner left or right rear door .
• Release cover on door window frame, see 51 34 160 Removing and installing/replacing housing cover front left or right door window frame .

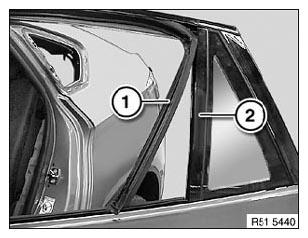

Pull out rubber guide (1) at trim (2).

Installation:

Moisten rubber guide (1) with water before fitting.

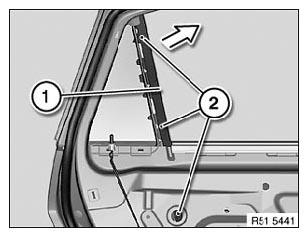

Release screws (2).

Remove trim (1) for window guide in direction of arrow.

Installation:

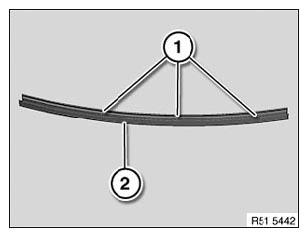

Threads (1) of trim (2) must not be damaged.
