Windscreen removal system "Roll Out 2000"

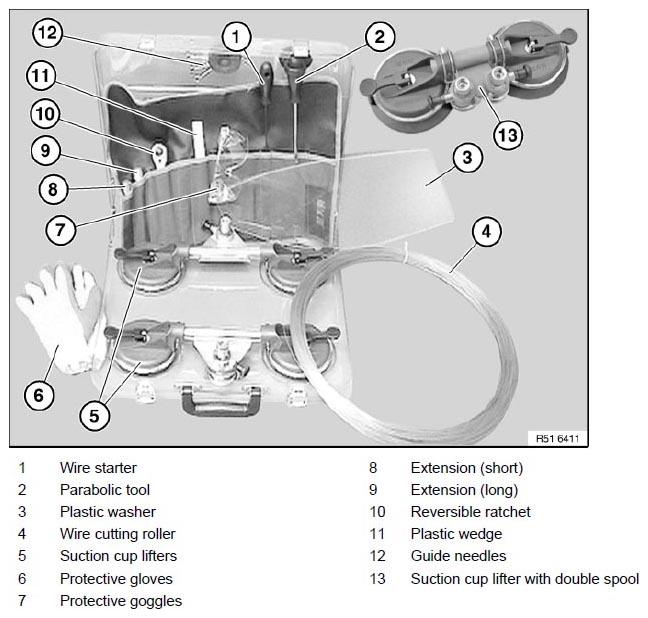

Fig 1: Identifying Windscreen Components (Roll Out 2000)
G06212715Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Both paintwork and ergonomic and health-endangering damage is minimized with the "Roll Out 2000" system.
WARNING: Follow safety instructions for working on cars with airbag systems (risk of injury), see 51 00... Safety instructions for working on cars with airbag systems .
IMPORTANT: Take care when handling sharp-edged tools and cutting wire (risk of damage to head airbag and window glass).
IMPORTANT: Always keep both suckers dry and clean to ensure their optimum adhesion on the windscreen.
Lubricate spool if interlock rattling becomes too loud.
Always wear protective goggles and gloves for your own safety.
