51 47... Removing and installing/replacing front left or right lip

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1).

Feed out lip (2).

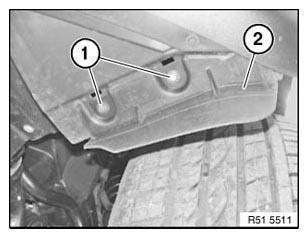

Fig 1: Identifying Lip Screws

Courtesy of BMW OF NORTH AMERICA, INC.
