61 67 100 Removing and installing/replacing high-pressure nozzle of headlight washer system on left (or right)

Special tools required:

00 9 340
13 3 010

NOTE:

See MAINTENANCE AND GENERAL INFORMATION - SPECIAL TOOLS .

See FUEL SYSTEM - SPECIAL TOOLS .

Necessary preliminary tasks:

Remove front bumper trim . See 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

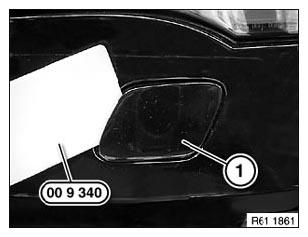

Lever out cover (1) with special tool 00 9 340 .

Fig 1: Lever Out Cover With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

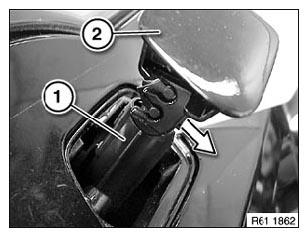

Slowly pull out high-pressure nozzle of headlight washer system (1) at cover (2).

Unclip cover (2) in direction of arrow and remove.

Allow high-pressure nozzle of headlight washer system (1) to slide back slowly.

Fig 2: Identifying Headlight Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

To prevent excessive escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 .

Catch any escaping washer fluid if necessary.

Fig 3: Seal Off High-Pressure Line With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Raise retaining bracket (1) and detach high-pressure line (2) in direction of arrow from high-pressure nozzle of headlight washer system (4).

Raise retaining lugs (3) in direction of arrow and feed high-pressure nozzle of headlight washer system (4) towards rear out of front side panel.

Installation:

Keep plug connection for high-pressure nozzle (4) and high-pressure line (2) clean and free from grease.

Make sure high-pressure line (2) is correctly engaged on high-pressure nozzle (4) and high-pressure nozzle (4) correctly seated on front side panel respectively.

Fig 4: Identifying Retaining Lugs And Headlight Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

Carry out a function test before fitting bumper trim.

If necessary, top up washer fluid.
