61 12 210 Replacing wiring harness in left or right rear door
IMPORTANT:
Read and comply with notes on handling wiring harnesses
and cables.
Necessary preliminary tasks:
- Close rear side window completely
- Remove rear sound insulation . See 51 48 070 REMOVING AND INSTALLING/REPLACING SOUND INSULATION ON LEFT OR RIGHT REAR DOOR .
NOTE:
Work is shown on the E70 by way of example. There may be differences in detail from other vehicle models and equipment specifications.

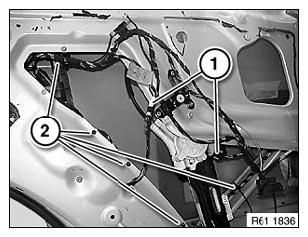

Disconnect plug connection (1).
Disconnect door lock plug connection.
Release all attachment points (2) of door wiring harness.

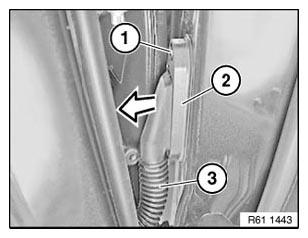

Release screw (1), fold door wiring harness plug on B-pillar (2) downwards slightly and remove in direction of arrow.
Disconnect associated plug connection.
Pull rubber grommet (3) out of rear door.
Feed out door wiring harness towards front to B-pillar and remove.
