67 11 555 Removing and installing/replacing servodrive for tank filler flap

Necessary preliminary tasks:

Disconnect battery negative lead , see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
Open flap in luggage compartment panel on right

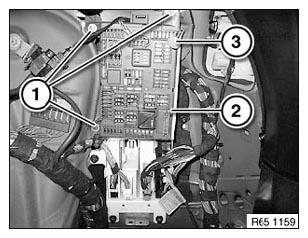

Release screws (1).

Disengage emergency release mechanism (3).

Remove distribution board (2) and place to one side.

Fig 1: Identifying Screws And Release Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

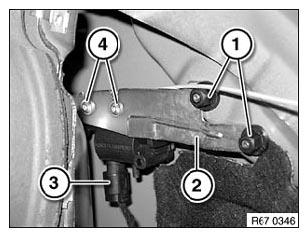

Release nuts (1) and feed out holder (2) towards rear.

Disconnect plug connection (3) and remove servodrive complete with holder (2).

Fig 2: Identifying Nuts, Holder And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

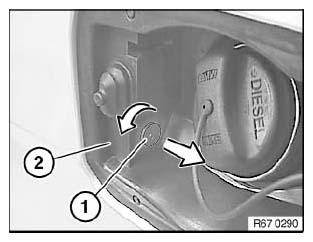

Turn sleeve (1) with a suitable tool (e.g.: pointed pliers) approx. 45° in direction of arrow and pull out of cover housing (2).

Fig 3: Turning Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

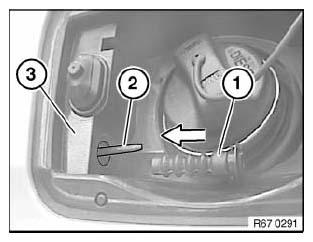

Slide sleeve (1) over locking pin (2).

Make sure sleeve (1) is correctly engaged in cover housing (3).

Fig 4: Sliding Sleeve Over Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

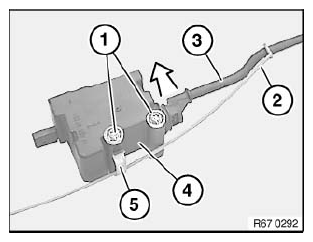

Release screws (1).

Disengage emergency actuation pull strap (2) from retainer (5) and remove towards front.

If necessary, unclip locking pin (3) in direction of arrow from servodrive for tank filler flap (4).

Fig 5: Uncoupling Locking Pin

Courtesy of BMW OF NORTH AMERICA, INC.
