63 11 845 Replacing left LED fan (middle)

Necessary preliminary tasks:

Remove left headlight with LED technology .

NOTE: Graphic similar!

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!

Installation note: Check seal. Replace protective cap (1) if necessary. Comply with Instructions for replacing the protective cap . Protective cap (1) must lock correctly! Turn the protective cap (1) clockwise to end stop (A)!

Fig 1: Turning Protective Cap Clockwise To End Stop

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Danger of injury from cutting tool; wear gloves that provide protection against cutting.

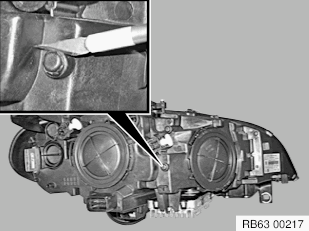

Open repair cap as shown using suitable tool (e. g. cutter knife). Installation note: Repair opening is closed again using the plug contained in the repair kit.

Fig 2: Opening Repair Cap

Courtesy of BMW OF NORTH AMERICA, INC.

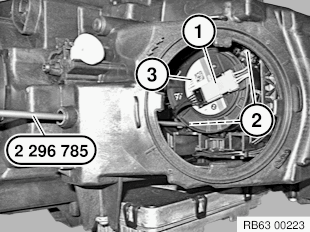

Disconnect plug connection (1). Release screws (2) using tool 2 296 785. Tightening torque 1.5 Nm. Take fan (3) out of headlight.

Fig 3: Removing Fan From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.
