61 31 035 Removing and installing/replacing switch for steering column adjustment

Necessary preliminary tasks:

• Remove lower section of steering column trim  . See 32 31 020 REMOVING AND INSTALLING/REPLACING LOWER SECTION OF STEERING COLUMN TRIM .

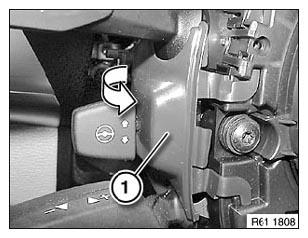

Unclip steering column adjustment switch (1) in direction of arrow.

Fig 1: Identifying Steering Column Adjustment Switch

Courtesy of BMW OF NORTH AMERICA, INC.

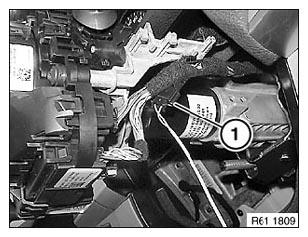

Disconnect plug connection (1).

Fig 2: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
