51 00... Overview of front door

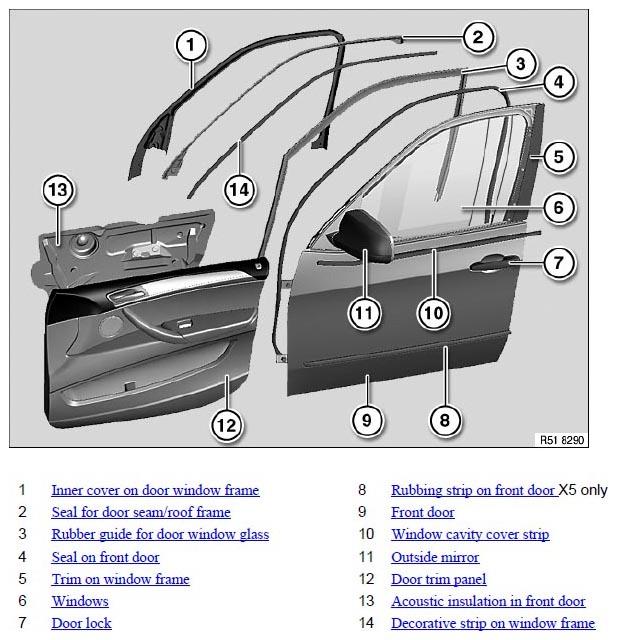

Fig 1: Identifying Front Door Components

G06212393

Courtesy of BMW OF NORTH AMERICA, INC.
