65 12 230 Removing and installing (replacing) DAB tuner
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection)
, see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
NOTE:
Follow instructions for handling optical fibres, see 61 00... NOTES ON HANDLING OPTICAL FIBERS
.
Necessary preliminary tasks:
- Disconnect battery negative lead , see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove luggage compartment panel on side panel on left, see 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

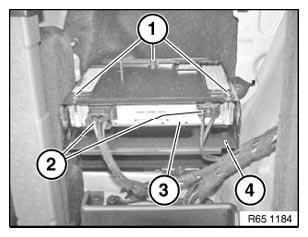

Release screws (1).
Disconnect plug connections (2) and remove DAB tuner (3) from holder (4).
Replacement:
Carry out vehicle programming/coding.
