65 77 720 Removing and installing (replacing) left B-pillar sensor
WARNING:
Note airbag safety instructions!
, see 72 00... SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS
.
Incorrect handling can activate airbag and cause injury.
Incorrect handling can activate airbag and cause injury.
Necessary preliminary tasks:
- Disconnect battery negative lead and cover, see 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD .
- Remove front entrance cover strip , see 51 47 000 REMOVING AND INSTALLING/REPLACING FRONT (INSIDE) LEFT OR RIGHT ENTRANCE COVER STRIP .
Release screw (1).
Installation:
Replace screw (1).
Tightening torque 72 11 01AZ, see.
Unlock inertia reel unit (2) and remove from B-pillar.
Installation:
Inertia reel unit (2) is coded against incorrect installation (3).

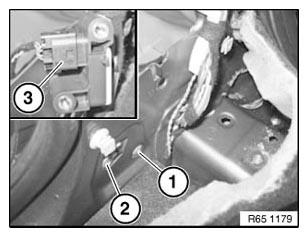

Release bolts (1).
Slacken screw (2) and feed out sensor.
Tightening torque 65 77 3AZ , see 65 77 AIRBAG TRIGGERING CONTROL .
Disconnect plug connection (3).
Installation:
Replace microencapsulated screws (1, 2).
Installation:
Establish correct positioning of B-pillar sensor (1) by means of guide pin (2) and screw (3).
Replace microencapsulated screws (3).
