Bend/Curve Mode

Depending on the driving situation, the image detail follows the cornering path of the vehicle along the same lines as the directional headlights.

The image detail is calculated in the camera.

Bend/curve mode is only available when the "Zoom" function is activated.

For better understanding, the following graphic shows a driving situation in which the "Bend/curve mode" function is activated.

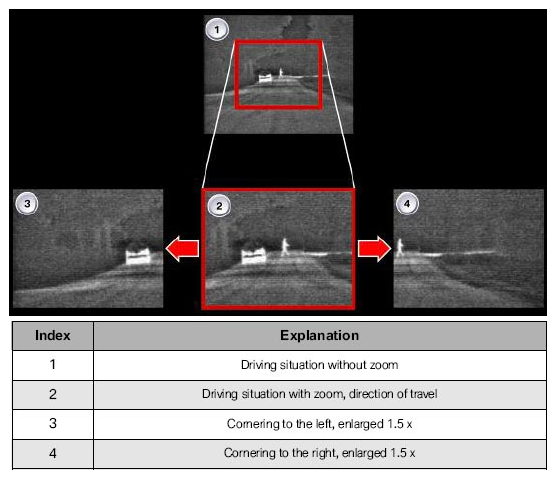

Fig 1: Identifying Bend/Curve Mode Function
G04750850Courtesy of BMW OF NORTH AMERICA, INC.
