66 53 020 Removing and installing/replacing reversing camera RFK (after 10/2009)

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) , see 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

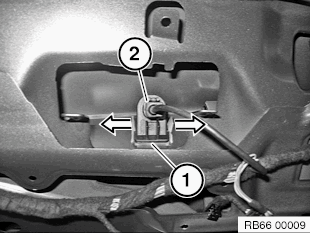

Unlock holder (1) in direction of arrow. Remove reversing camera (2).

Replacement: Remove protective film from reversing camera lens.

Fig 1: Removing Reversing Camera

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect. Remove reversing camera (2).

Fig 2: Unfastening Reversing Camera From Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
