66 31 010 Instructions for ACC adjusting device

Requirements for the measurement area for ACC adjusting device

Dimensions:

1. Area behind the mirror of at least 80 cm that cane be entered
2. Distance between mirror and vehicle 80 cm +/- 5 cm
3. Total area of work area 360 cm x 660 cm

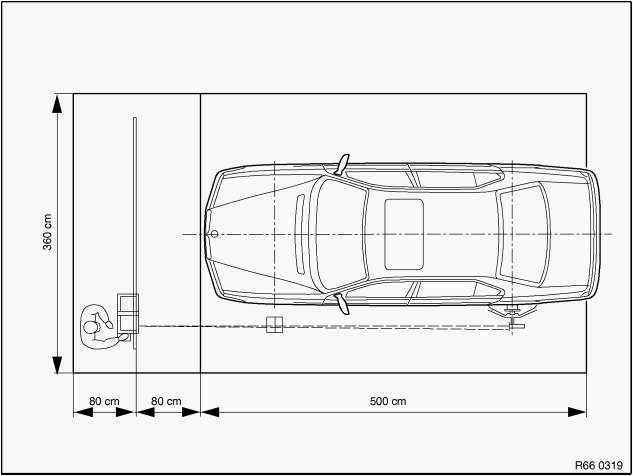

Fig 1: Identifying Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Maximum irregularity of floor surface:

• Floor surface - adjusting device ≤ 1 mm
• Floor surface - vehicle ≤ 10 mm

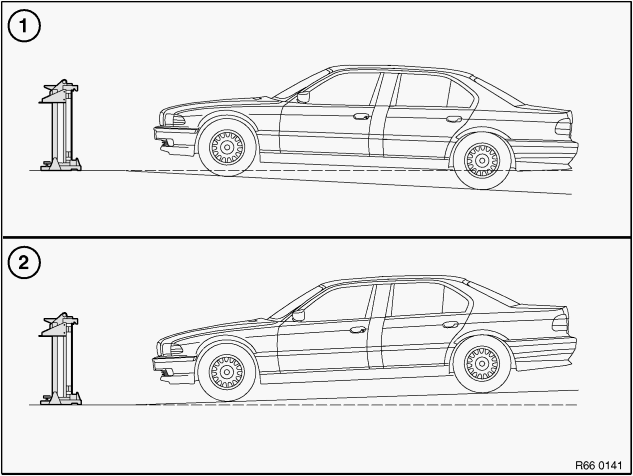

Fig 2: Identifying Maximum Upward/Downward Incline Angles

Courtesy of BMW OF NORTH AMERICA, INC.

Maximum angle of inclination of floor surface - vehicle:

• Downward incline of floor surface maximum 3°, see graphic above (1)
• Upward incline of floor surface maximum 1°, see graphic above (2)

Setting up the ACC adjusting device (one-off task) comprises the following steps:

• Assembly of adjusting device
• Assembly of rail
• Basic setting of adjusting device on measurement area
