Displays in Event of a Fault: Notes

The following warnings are displayed if the camera is faulty:

• Check control icon in the instrument cluster
• A symbol/description is also shown in CD or CID
• Check control message in the cluster under the tachometer (E65/E66 only)

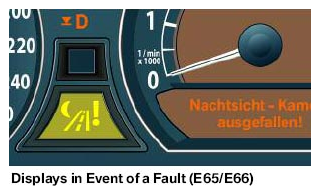

  Fig 1: Displays In Event Of A Fault (E65/E66)

  Courtesy of BMW OF NORTH AMERICA, INC.

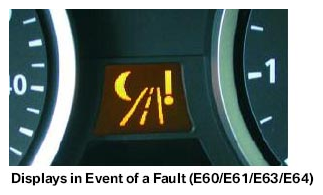

  Fig 2: Displays In Event Of A Fault (E60/E61/E63/E64)

  Courtesy of BMW OF NORTH AMERICA, INC.
