61 11... Remove and install / replace the HSD cable for the Top View camera in the exterior mirror, left or right

Necessary preliminary tasks:

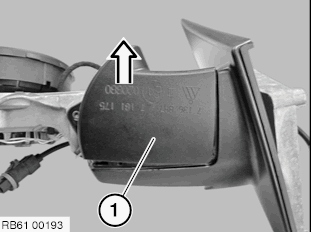

Lever out the cover (1) in direction of arrow.

Fig 1: Levering Out Cover In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

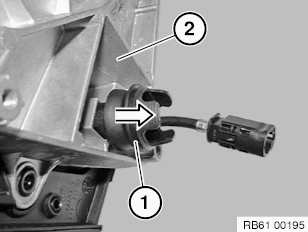

Pull the rubber grommet including internal connector (1) out of the mirror housing (2) in direction of arrow.

Fig 2: Pulling Rubber Grommet Out Of Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.

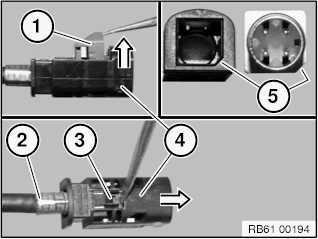

Unlock the lock (1) in direction of arrow with suitable tool.

IMPORTANT: Risk of damage!

Unlock the lock (3) carefully with a suitable tool. Pull the connector housing (4) off the HSD cable (2) in direction of arrow.

Installation note: Pay attention to encoding (5)!

Fig 3: Identifying Lock And Connector Housing

Courtesy of BMW OF NORTH AMERICA, INC.

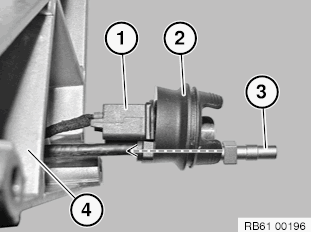

Feed the HSD cable (3) out of the rubber grommet (2).

NOTE: Leave the rubber grommet (2) on the connector (1).

Feed the HSD cable (3) out of the mirror housing (4).

Fig 4: Feeding HSD Cable Out Of Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.

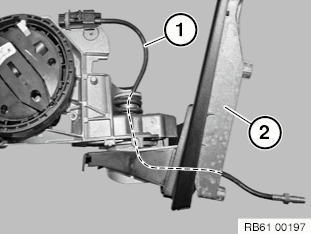

Installation note: The HSD cable (1) is routed in the mirror housing (2) as shown.

Fig 5: Routing HSD Cable In Mirror Housing

Courtesy of BMW OF NORTH AMERICA, INC.
