61 31 334 Removing and installing or replacing grip trim for gear selector switch

Special tools required:

NOTE:

Turn circlip (1) in direction of arrow and remove.

Installation:

Make sure circlip (1) is correctly seated.

Fig 1: Turning Circlip

Courtesy of BMW OF NORTH AMERICA, INC.

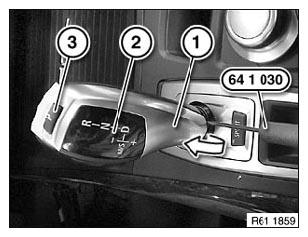

Feed special tool 64 1 030 from below into trim (1) and carefully pull off trim (1) in direction of arrow.

Remove symbol plate (2).

Installation:

To facilitate fitting, secure pushbutton (3) with adhesive tape on trim (1).

Fig 2: Secure Pushbutton (3) With Adhesive Tape On Trim (1)

Courtesy of BMW OF NORTH AMERICA, INC.
