61 31 241 Removing and installing/replacing bonnet/hood contact switch

Necessary preliminary tasks:

• Remove right bonnet/hood lock

Release screw (1).

Remove bonnet/hood contact switch (2) from bonnet/hood lock (3).

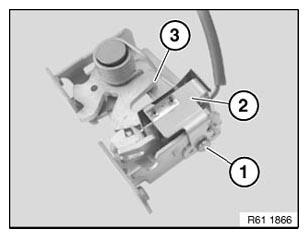

Fig 1: Identifying Bonnet, Hood Contact Switch And Hood Lock

Courtesy of BMW OF NORTH AMERICA, INC.
