61 71 061 Replacing (removing and installing) fluid reservoir for windscreen washer unit

Necessary preliminary tasks:

NOTE: Work is shown on the E70 by way of example. There may be differences in detail in the case of other vehicle models.

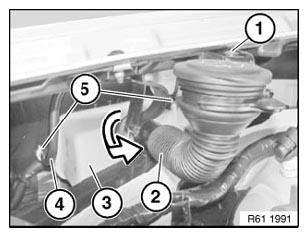

Release screw (1).

Twist filler duct (2) in direction of arrow out of fluid reservoir for windscreen washer unit (3) and remove.

If necessary, release air supply unit vent line (4) at mounting points (5) from fluid reservoir for windscreen washer unit (3).

Fig 1: Release Air Supply Unit Vent Line (4) At Mounting Points (5) From Fluid Reservoir For Windscreen Washer Unit (3)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage!
Carry out this operation carefully so as to avoid damaging the side panel.

Release screws.

Pull side panel forwards slightly.

Installation:

Tightening torque, see 41 35 7AZ (A-pillar area) in 41 35 SIDE PANELS .

Tightening torque, see 41 35 8AZ (sill area) in 41 35 SIDE PANELS .

Fig 2: Removing Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Side panel shown removed for purposes of clarity.
Catch any escaping washer fluid if necessary.

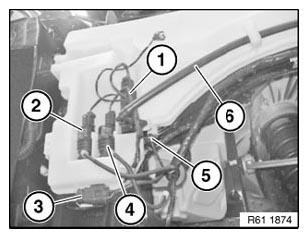

Remove level switch for windscreen washer unit (5) .

Remove washer pump of headlight washer system (1) .

Remove windscreen washer pump (4) .

If necessary, remove washer pump for rear window washer system (2) .

Unlock plug connection (3) on fluid reservoir for windscreen washer system and disconnect.

Remove high-pressure line (6) and if necessary air supply unit vent line from fluid reservoir for windscreen washer unit.

Fig 3: Identifying Windscreen Washer Pump And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

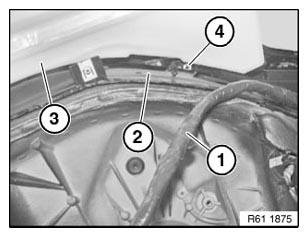

Release wiring harness (1) from wheel arch (2) and lay to one side.

Release screw (4).

Feed out fluid reservoir for windscreen washer unit (3) towards front.

Fig 4: Identifying Wiring Harness, Wheel Arch And Windscreen Washer Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

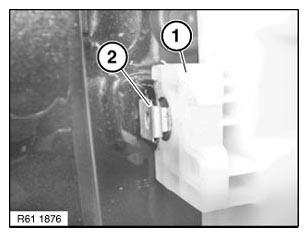

Make sure fluid reservoir for windscreen washer unit (1) is correctly seated in lug (2)
Replace strainers on washer pumps
Coat sealing rings of washer pumps with antiseize agent
Make sure hoses and wiring harnesses are correctly routed
Fill fluid reservoir

Fig 5: Identifying Windscreen Washer Unit And Lug

Courtesy of BMW OF NORTH AMERICA, INC.
