Cutting optical fibre to length

IMPORTANT: The cutting blade must be replaced prior to each cutting of the optical fibre.

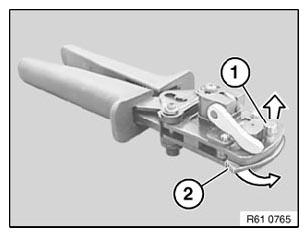

Pull pin (1) in direction of arrow.

Fold up blade retaining link (2) in direction of arrow.

Fig 1: Identifying Blade Retaining Link And Pin

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Risk of injury when changing the blade.

Remove blade (1) and replace.

Installation:

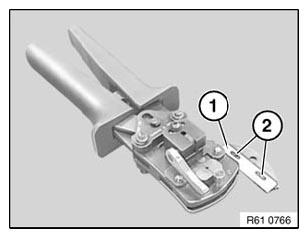

Make sure blade (1) is correctly seated on locating points (2).

Fig 2: Identifying Blade And Locating Points

Courtesy of BMW OF NORTH AMERICA, INC.

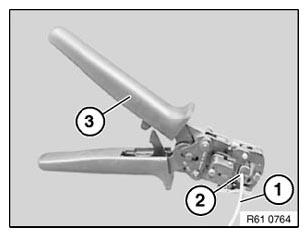

Open pliers (3).

Slide optical fibre (1) into cutting device (2) until insulation of optical fibre (1) butts against clamping device.

Close pliers (3) fully and keep closed.

Remove optical fibre (1).

Fig 3: Identifying Optical Fibre And Cutting Device

Courtesy of BMW OF NORTH AMERICA, INC.
