61 35 954 Removing and installing/replacing interior antenna for comfort access system (rear center console)

Necessary preliminary tasks:

• Remove rear center console trim  . See 51 16 163 REMOVING AND INSTALLING/REPLACING REAR CENTER CONSOLE TRIM .

Unlock retaining hook (1) and remove interior antenna for comfort access system (2).

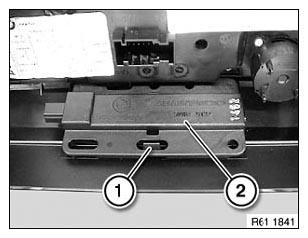

Fig 1: Identifying Retaining Hook And Interior Antenna

Courtesy of BMW OF NORTH AMERICA, INC.
