61 35 953 Removing and installing/replacing interior aerial/antenna for comfort access system (front center console)

Necessary preliminary tasks:

Release screw (1).

Release screw (2) through opening (3).

Feed interior aerial/antenna for comfort access system (4) out of holder.

Disconnect plug connection and remove interior aerial/antenna for comfort access system (4).

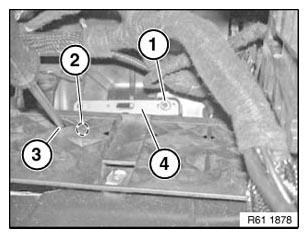

Fig 1: Identifying Interior Aerial And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
