51 16... Removing and installing/replacing upper trim on rear console

Necessary preliminary tasks:

Remove rear seats , see 52 26 000 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT .

Release screws (1) under rubber insert.

Release screws (2 and 3) on left and right sides.

Disconnect plug connection (4).

Lift out center console (5).

Fig 1: Identifying Centre Console, Plug Connection And Screws

G06212474

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Feed cup holder from below out of frame (2) in direction of arrow first at point A, then at point B.

Fig 2: Identifying Frame And Screws

G06212484

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on frame (2).

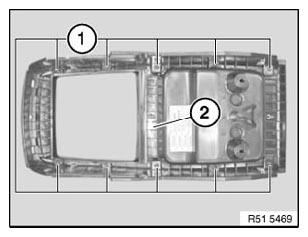

Fig 3: Identifying Screws And Frame

G06212485

Courtesy of BMW OF NORTH AMERICA, INC.

Release trim (2) at retainers (3) from frame (1).

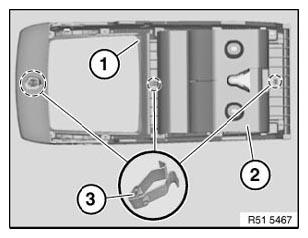

Fig 4: Identifying Trim, Retainers And Frame

G06212486

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainers (1) on trim (2) must not be damaged.

Make sure retainers (1) is correctly seated on lugs.

Fig 5: Identifying Retainers And Trim

G06212487

Courtesy of BMW OF NORTH AMERICA, INC.
