51 23 100 Removing and installing/replacing right engine hood/bonnet lock: Notes

Unclip coupling (1) from side panel.

Lever out cover (2) at coupling (1).

Lever Bowden cable (3) out of coupling (1).

Fig 1: Identifying Cable And Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

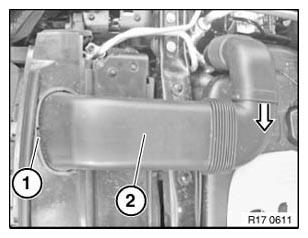

Lever out expander rivets on transverse reinforcement. Press lock (1) and raise intake duct (2). Detach intake duct (2) from air filter housing in direction of arrow and remove.

Fig 2: Detaching Intake Duct From Air Filter Housing

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip Bowden cable (1) from holder (2) on transverse reinforcement.

Fig 3: Uncoupling Bowden Cable From Holder On Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws on left and right sides of transverse reinforcement (1). Tightening torque 51 71 4AZ . Remove transverse reinforcement (1), see 51 71 SEALS AND LOOSE BODY PARTS .

Fig 4: Identifying Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustration shows A/C lines and module support cover removed for purposes of clarity.

Release screws (1).

Tightening torque 51 23 2AZ , see 51 23 HOOD/BONNET LOCKS .

Feed out hood/bonnet lock (2) through opening (3).

Fig 5: Feeding Out Hood/Bonnet Lock Through Opening

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1), unclip plug and cable from body.

Disengage Bowden cable (1) in direction of arrow from hood/bonnet lock (3).
