51 47... Removing and installing/replacing rear left or right ram-air lip

NOTE: The operation is described on the left side; proceed in the same way for the right side.

Release screws (1).

Remove ram-air lip (2).

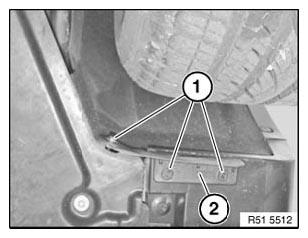

Fig 1: Identifying Ram-Air Lip Screws

Courtesy of BMW OF NORTH AMERICA, INC.
