32 33 010 Removing and installing/replacing sport steering wheel

IMPORTANT: Move wheels into straight-ahead position and do not alter this position during the repair work.
Do not under any circumstances turn the steering-column switch cluster when the steering wheel is removed.

NOTE: Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks

Remove AIRBAG UNIT .

Move wheels/sport steering wheel into straight-ahead position.

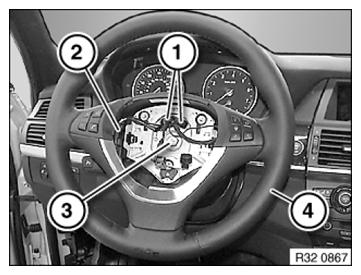

Disconnect plug connection (1).

If necessary, disconnect plug connection (2) for steering wheel heating.

Release screw (3) and remove sport steering wheel (4).

Installation:

Make sure connecting lead(s) is/are correctly laid.

Tightening torque 32 33 1AZ .

Fig 1: Identifying Plug Connection, Sport Steering Wheel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version with steering wheel heating: Before fitting sport steering wheel on steering column, ensure correct cable routing.

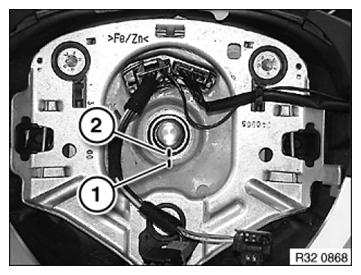

Align sport steering wheel by way of marking (1) to steering column marking (2) and attach.

Fig 2: Aligning Sport Steering Wheel By Way Of Marking To Steering Column Marking

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Modify both SWITCHES ON SPORT STEERING WHEEL .
Modify DESIGN COVER/ACCENT TRIM .
If necessary, modify steering wheel module control unit.
