31 10 010 Removing and installing/replacing reinforcement plate
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without reinforcement plate is not permitted!
Driving without reinforcement plate is not permitted!

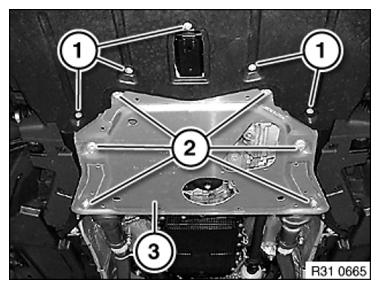

Release bolts (1) for assembly underside protection at front.
Unfasten screws (2).
Remove reinforcement plate (3).
Installation:
Replace screws.
Tightening torque 31 10 2AZ .
