65 11 075 Removing and installing/replacing DVD changer

Open glovebox.

Release trim (1) at clips (2).

Installation:

Replace damaged clips (2):

Fig 1: Identifying Glovebox Trim And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull out DVD changer (2) and disconnect associated plug connection.

Tightening torque 65 52 5AZ .

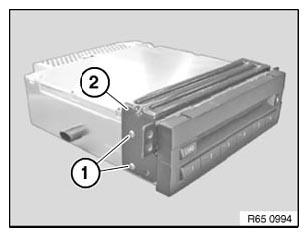

Fig 2: Identifying DVD Changer And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Release screws (1) on both sides and remove bracket (2).

Tightening torque 65 52 1AZ .

Fig 3: Identifying Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
