51 24 110 Removing and installing/replacing lock for rear lid upper section

Necessary preliminary tasks

Release screw (1).

Feed out Bowden cable (2) and remove cover (3).

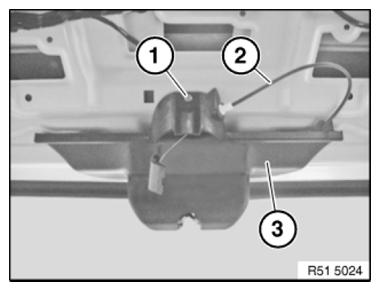

Fig 1: Identifying Bowden Cable, Cover And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 24 1AZ .

Feed out lock (2), disconnect plug connection and remove lock (2).

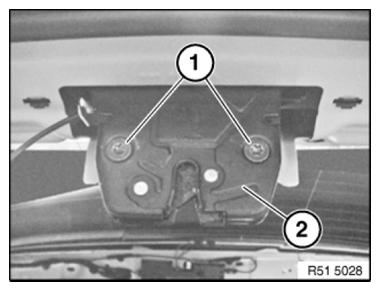

Fig 2: Identifying Rear Lid Upper Section Lock And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

Unhook Bowden cable (1) from lock (2).

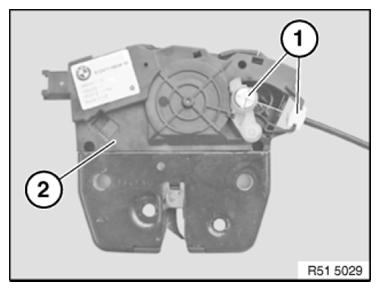

Fig 3: Identifying Bowden Cable And Lock

Courtesy of BMW OF NORTH AMERICA, INC.
