51 34... Removing and installing/replacing trim for window guide of left or right rear door

Necessary preliminary tasks

Pull out rubber guide (1) at trim (2).

Installation:

Moisten rubber guide (1) with water before fitting.

Fig 1: Identifying Rubber Guide And Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) and carefully pull towards rear.

Release screws (2).

Feed out trim for outer window guide.

Fig 2: Identifying Outer Window Guide Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Threads (1) of trim (2) must not be damaged.

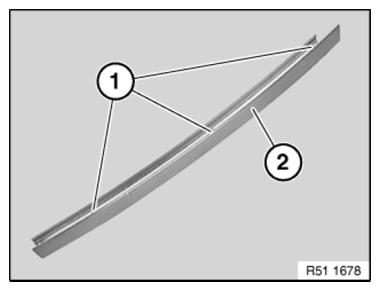

Fig 3: Identifying Rear Door Trim With Threads

Courtesy of BMW OF NORTH AMERICA, INC.
